46-50 Installation and User Guide V1.08

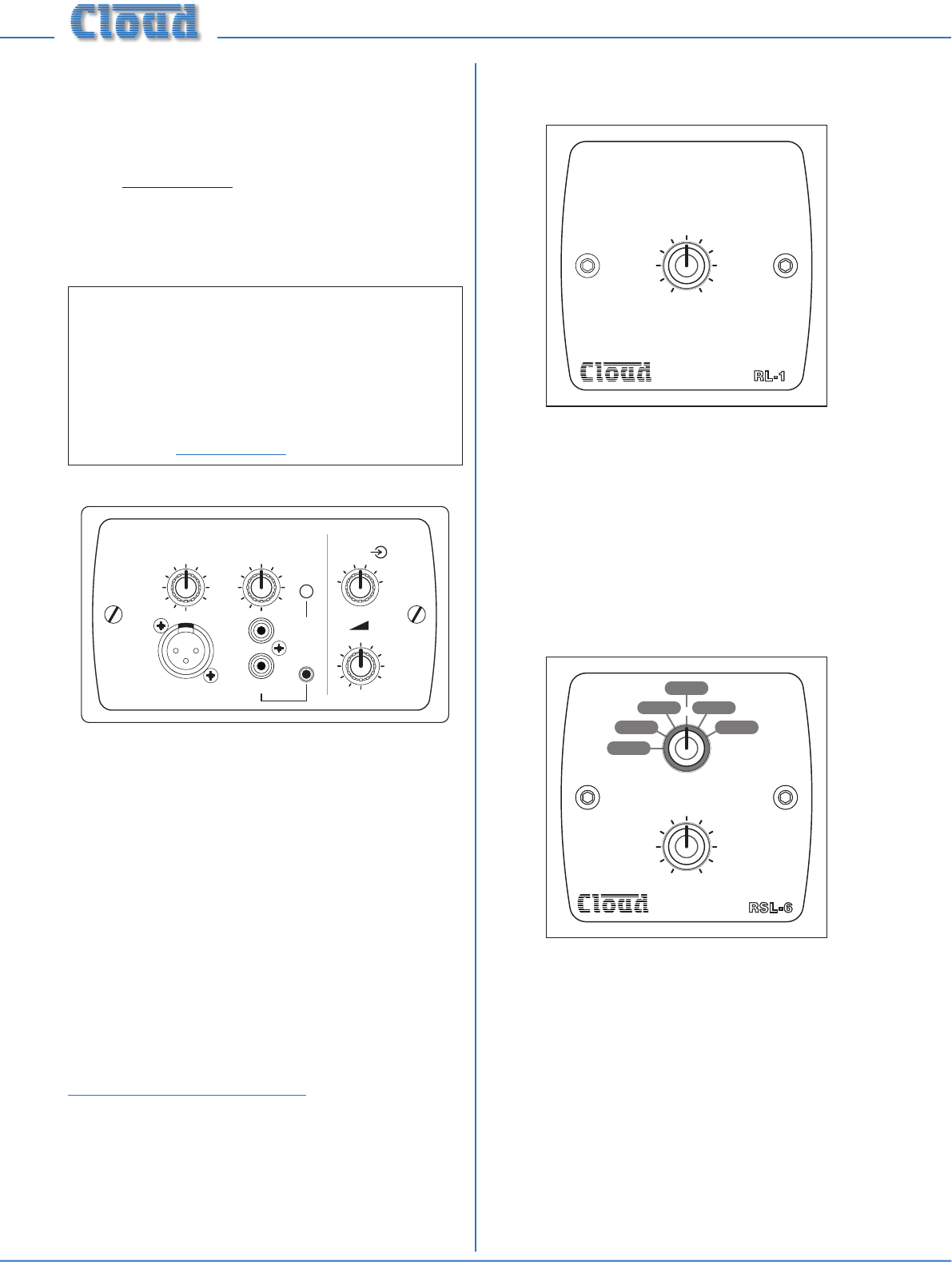

Optional system components

The following components may form part of the audio system

and may be ordered separately if required. They may also be

retrotted to a system at a later time. Separate datasheets

are available for each of the individual components; download

them at www.cloud.co.uk.

LM-2 remote active module

IMPORTANT

Connection of the LM-2 is via screened Cat 5 cable and RJ-

45 connectors. It is primarily intended for direct connection

to Cloud products such as the Z4 and Z8

MK3 Zone Mixers

and the 46-120 Mixer Amplier, but will operate correctly

with the 46-50 following wiring modications. A Technical

Note describing its use with the 46-50 is available from the

Cloud website www.cloud.co.uk.

MIC LEVEL

MUSIC LEVEL

LINE INPUT

MIC INPUT

LM-2

MIC

PRIORITY

The LM-2 is an active input module with one microphone and

one stereo line input, which allows a microphone and a line

level audio source - such as a DJ mixer, laptop, MP3 player or

similar - to be connected to the 46-50 at a remote location.

The module also includes the functions of the RSL-6 Remote

Control Plate (see opposite), permitting control of zone

music level and source. A music ducking button activates the

46-50’s priority circuitry; when enabled, a microphone signal

from the LM-2 will reduce the music level in the zone. The

LM-2 connects to the 46-50’s ZONE 1 FACILITY PORT

(but see note above), and thus will generally be installed

within Zone 1.

See page 16 for more information.

Note: the 46-50 is also compatible with certain earlier Cloud

remote modules such as the LM-1 and DM-1. Please see

www.cloud.co.uk/accessories/archive for more information.

RL-1 Series Remote Music Level Controls

MUSIC LEVEL

RL-1

The RL-1 Series is a range of small plates with a single control

for locally adjusting the music level in a zone. They connect to

one of the 46-50’s REMOTE MUSIC CONTROL ports.

See page 15 and page 21 for more information.

RSL-6 Series Remote Music Level/

Source Controls

RSL 6-

MUSIC LEVEL

SOURCE SELECT

The RSL-6 Series is a range of plates allowing local (per-zone)

music source selection as well as music level control. They are

the same size as the RL-1s, and connect in a similar way. See

page 16 and page 21 for more information.
