CX335 User Manual v1.0 7

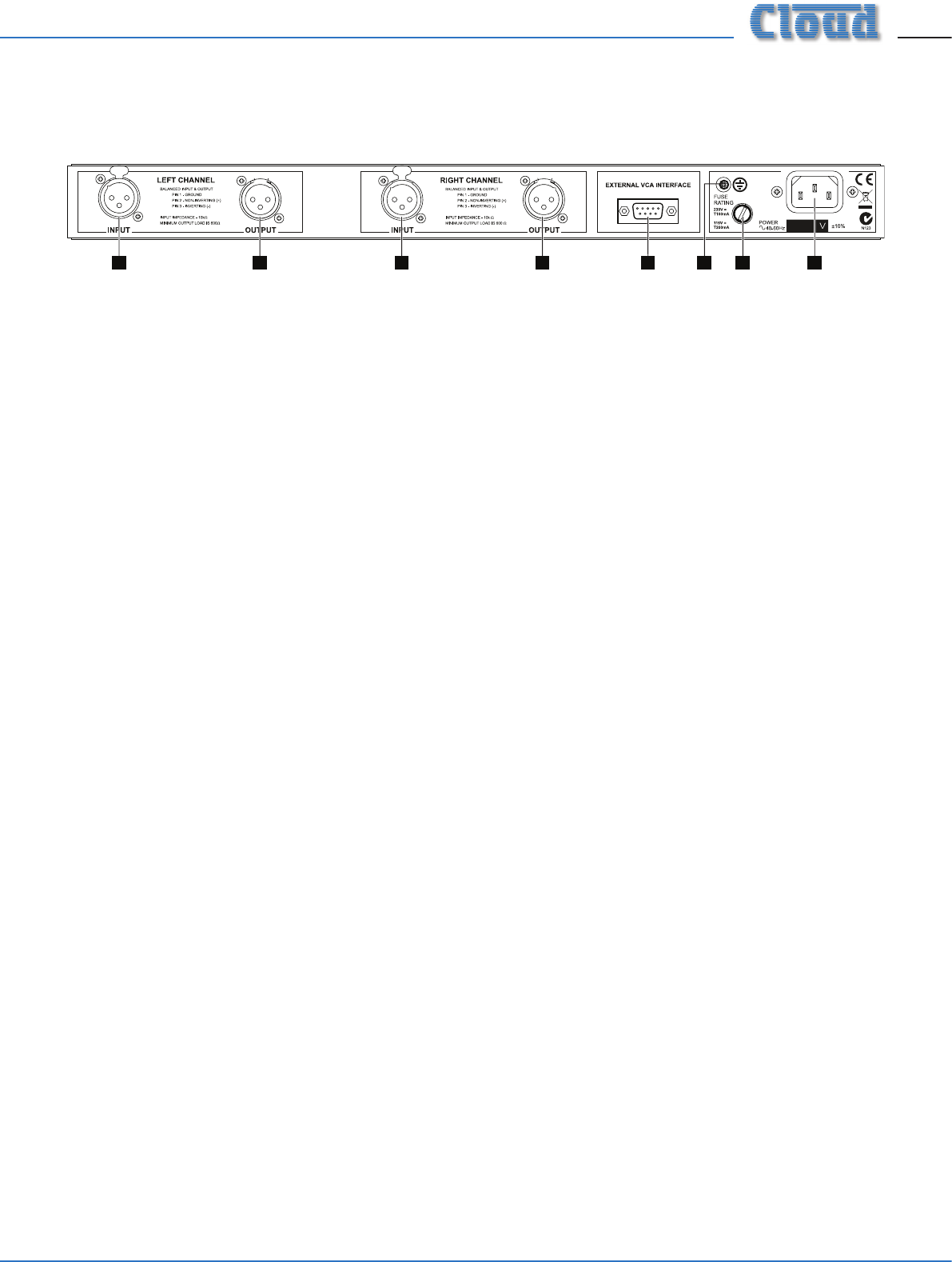

Rear panel descriptions

13 14 13 14 15 161718

13. INPUTS – 2 x XLR3F connectors: electronically-balanced inputs left and right channels.

14. OUTPUTS – 2 x XLR3M connectors: electronically-balanced outputs for left and right channels.

15. EXTERNAL VCA INTERFACE – 9-pin female Dsub connector for external DC control of VCA; this connector may be

used for remote muting or remote volume control purposes.

16. IEC power connector

17. AC mains fuse

18. Chassis ground terminal
